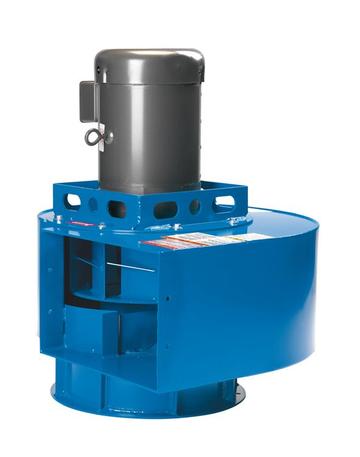

TORIT® backward inclined FANS


Tbi-1, 2, 3, 5, 7.5, 10, 15, 20, 25 and 30

 (60 and 50 CYCLE)

Torit Backward Inclined (TBI) Fans provide a convenient, cost-effective method of integrating a high efficiency fan with a Donaldson® Torit® dust collector.

• Mounts directly to the clean-air plenum of the dust collector, eliminating costly transition ducting, and reducing footprint of the system.

• Sizes range from 3 to 30 hp.

• Capacities from 1,400 to 10,300 cfm.

• Backward inclined fan wheel provides high efficiency operation.

• Direct-drive operation eliminates maintenance of fan bearings and belts.

• Computer balanced fan and motor assembly ensures vibration-free operation.

• All necessary hardware for quick and easy installation is included.

• Standard paint finish is blue.

• All 60 Hz motors are EISA compliant and meet or exceed NEMA Premium®* Efficiency Standards.

• Fan inlet spool piece is flanged.


Equipment Options:
• High performance Torit-Built® silencer (60 cycle only)
• Aluminum fan wheel
• Explosion-proof motors - NEMA
• Outlet dampers
• High temperature version available

• 50 cycle/IEC motor configurations
• Flanges for exhaust ductwork

Torit Radial Blade (TRB) Fans provide a convenient, cost-effective method of integrating a high efficiency fan with a Donaldson® Torit® dust collector.

• Mounts directly to the clean-air plenum of the dust collector, eliminating costly transition ducting, and reducing footprint of the system.

• Sizes range from 1 to 10 hp.

• Direct-drive operation eliminates maintenance of fan bearings and belts.

• Computer balanced fan and motor assembly ensures vibration-free operation.

• High temperature design operates up to 200°F/93°C.

• All necessary hardware for quick and easy installation is included.

• Aluminum fan wheel ensures compliance with safety regulations and meets AMCA C spark resistant requirements.

• Standard paint finish is blue.

• All 60 Hz motors are compliant with the Energy Independence and Security Act of 2007 (EISA).


EQUIPMENT OPTIONS:
•Explosion-proof motors – NEMA
•60 cycle NEMA or 50 cycle IEC motor configurations
•Outlet dampers
•Outlet guards
•Chamber silencer

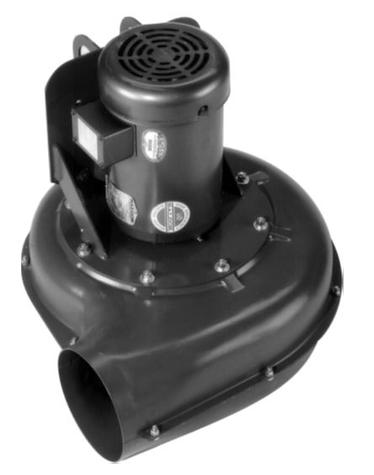

TORIT® RADIAL BLADE FANS

      TRB-1, 2, 3, 5, 7.5,  and 10

(60 and 50 CYCLE)



     TRB Direct Drive radial blade Fans




     TBI Direct Drive Backward Inclined Fans


Donaldson - Torit direct drive fans
